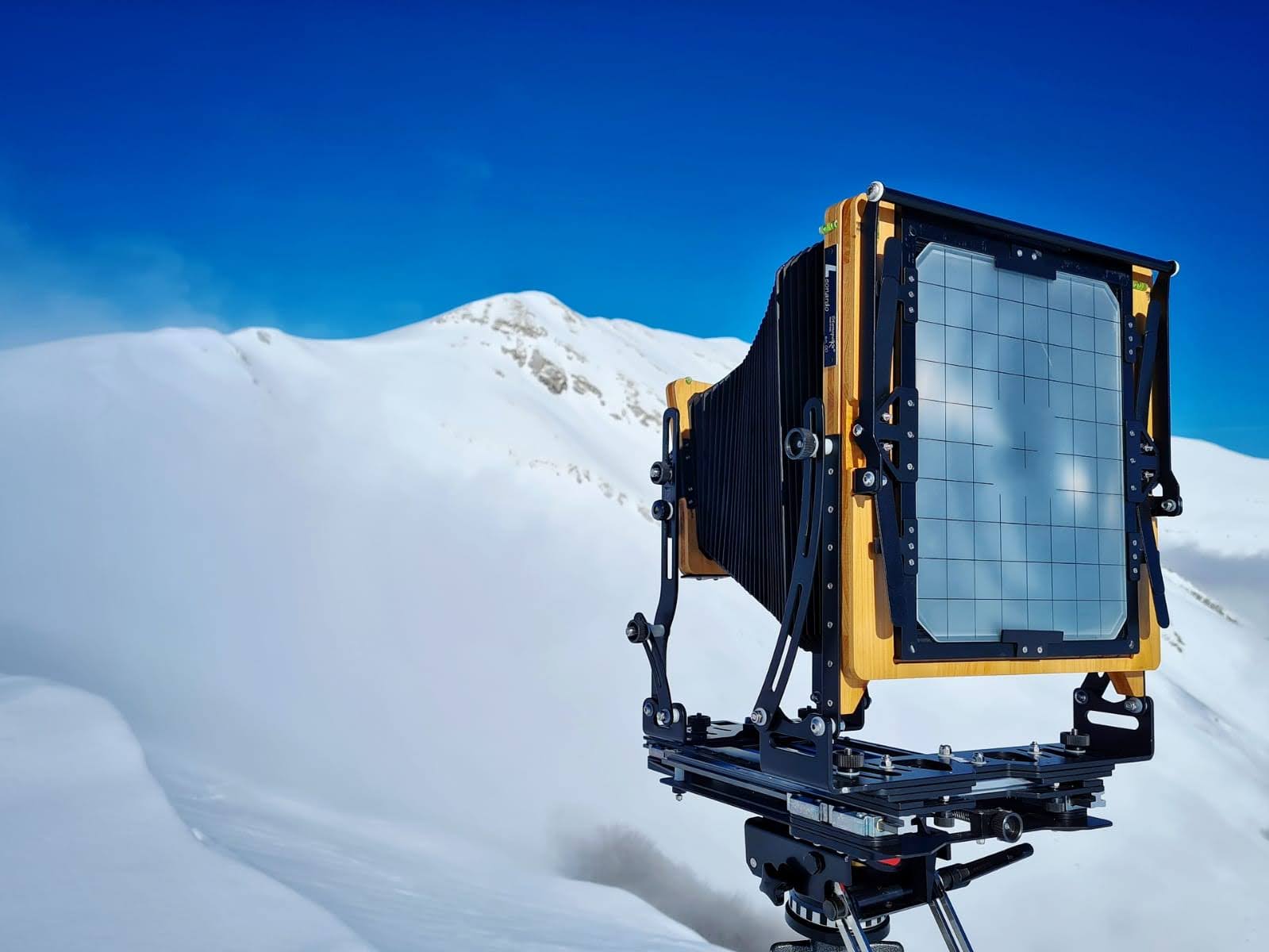

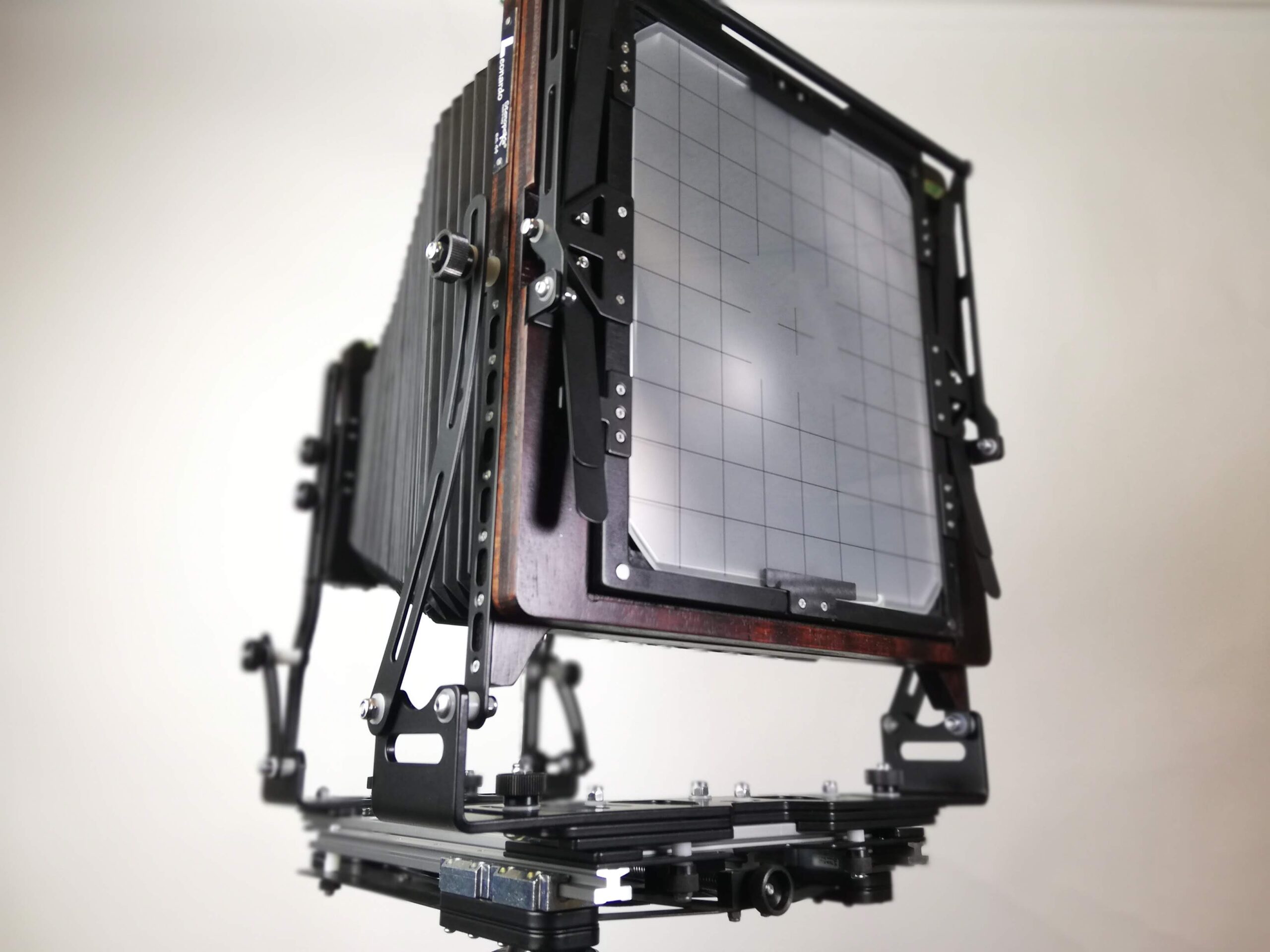

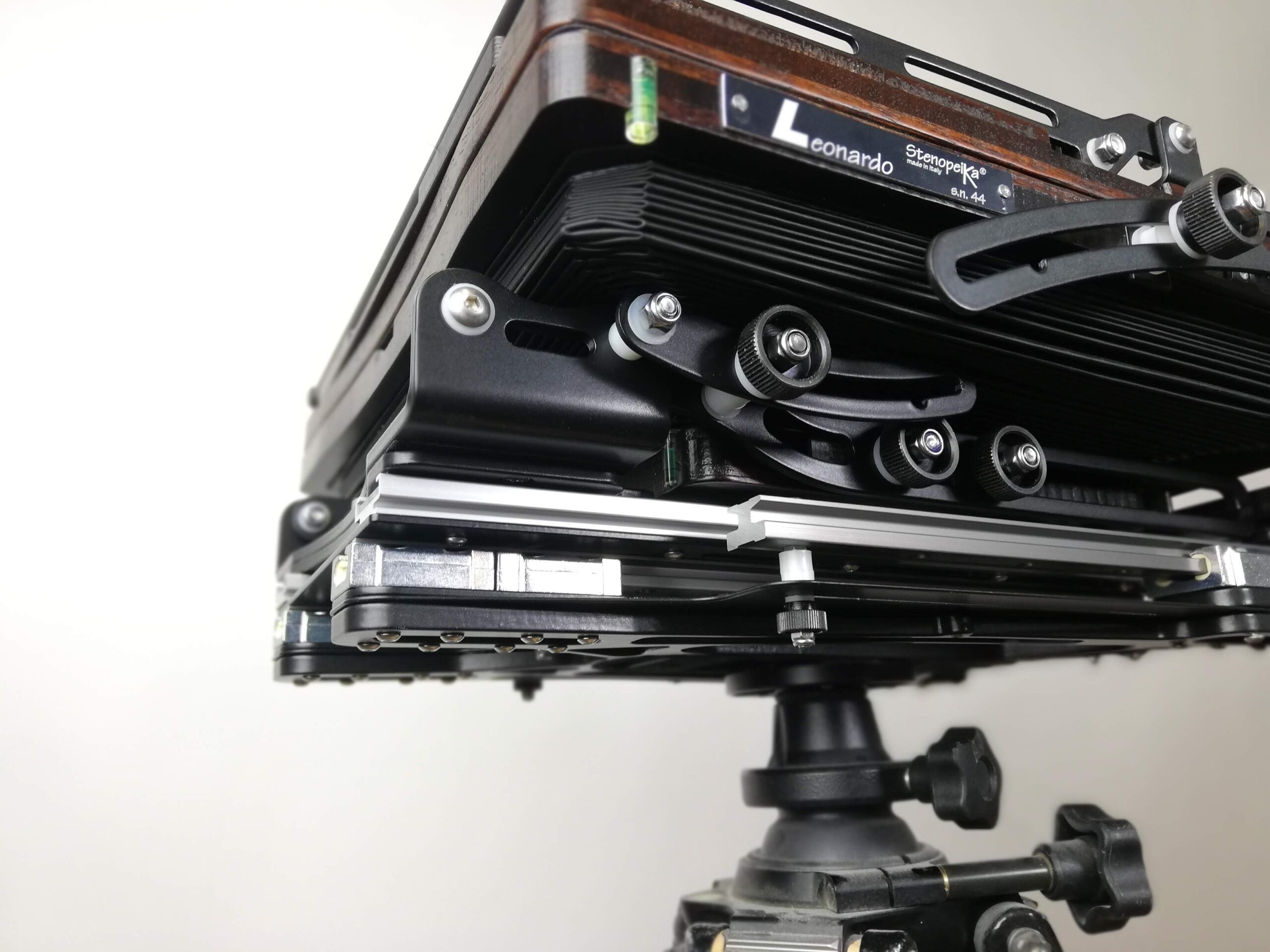

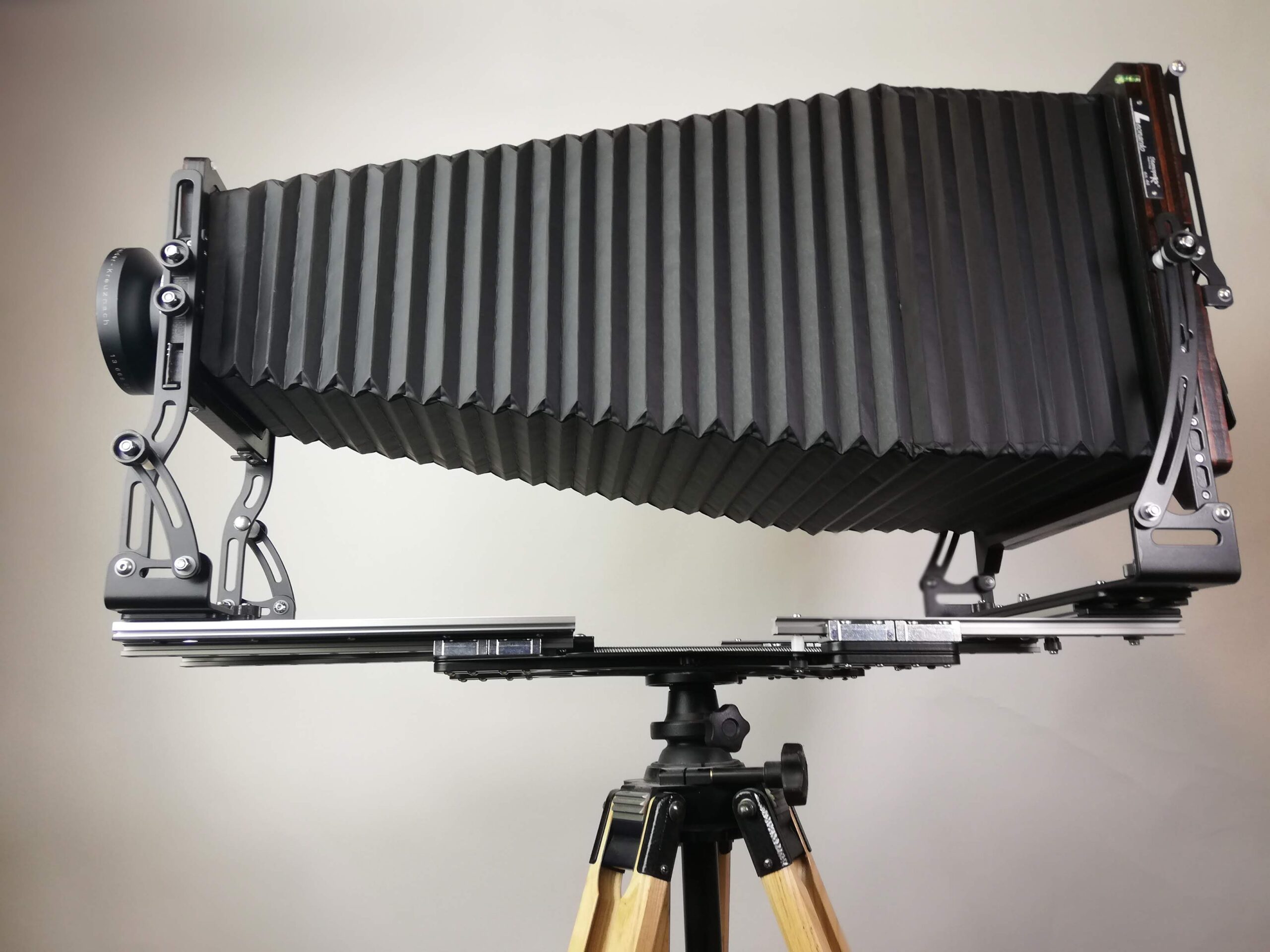

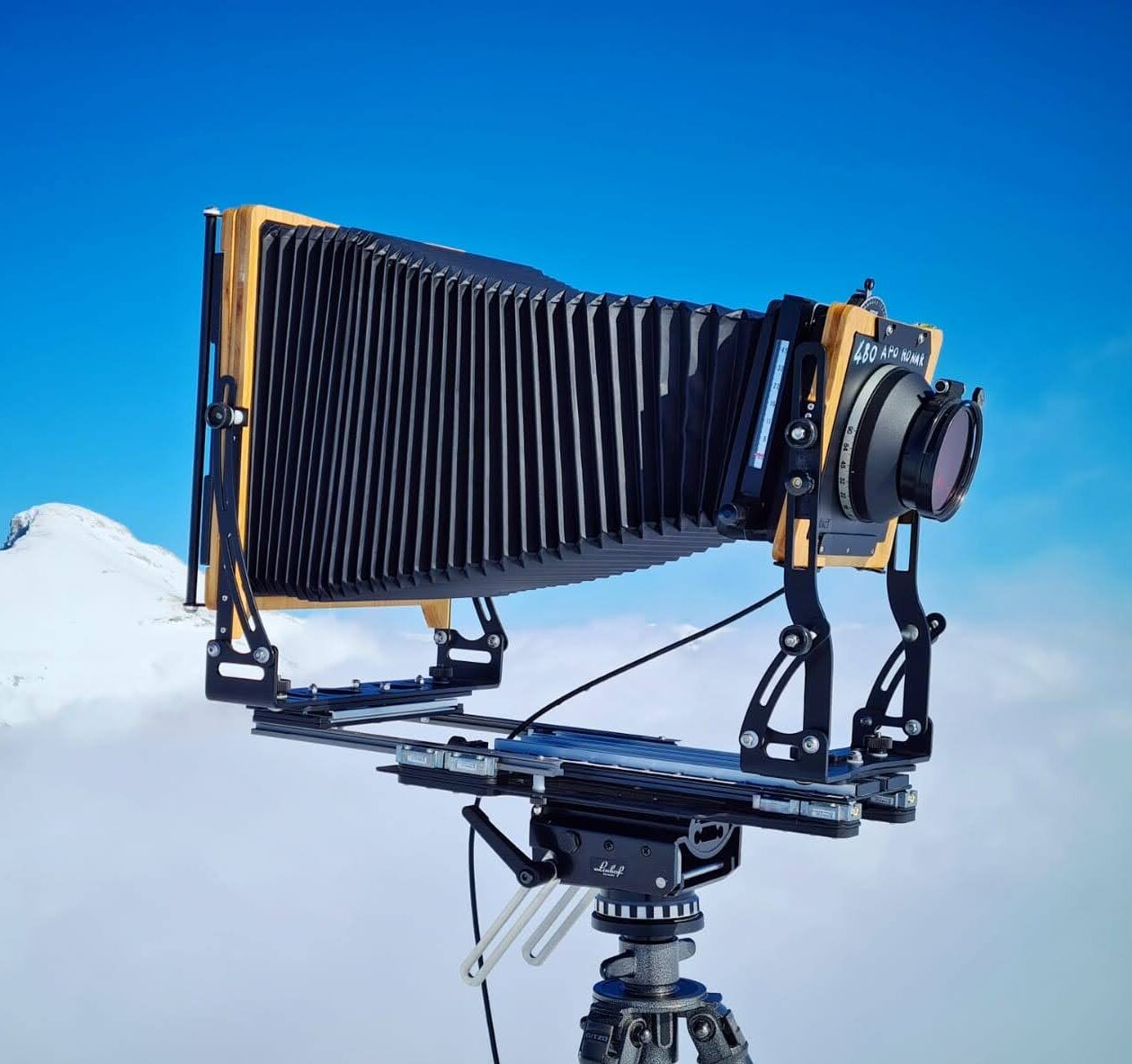

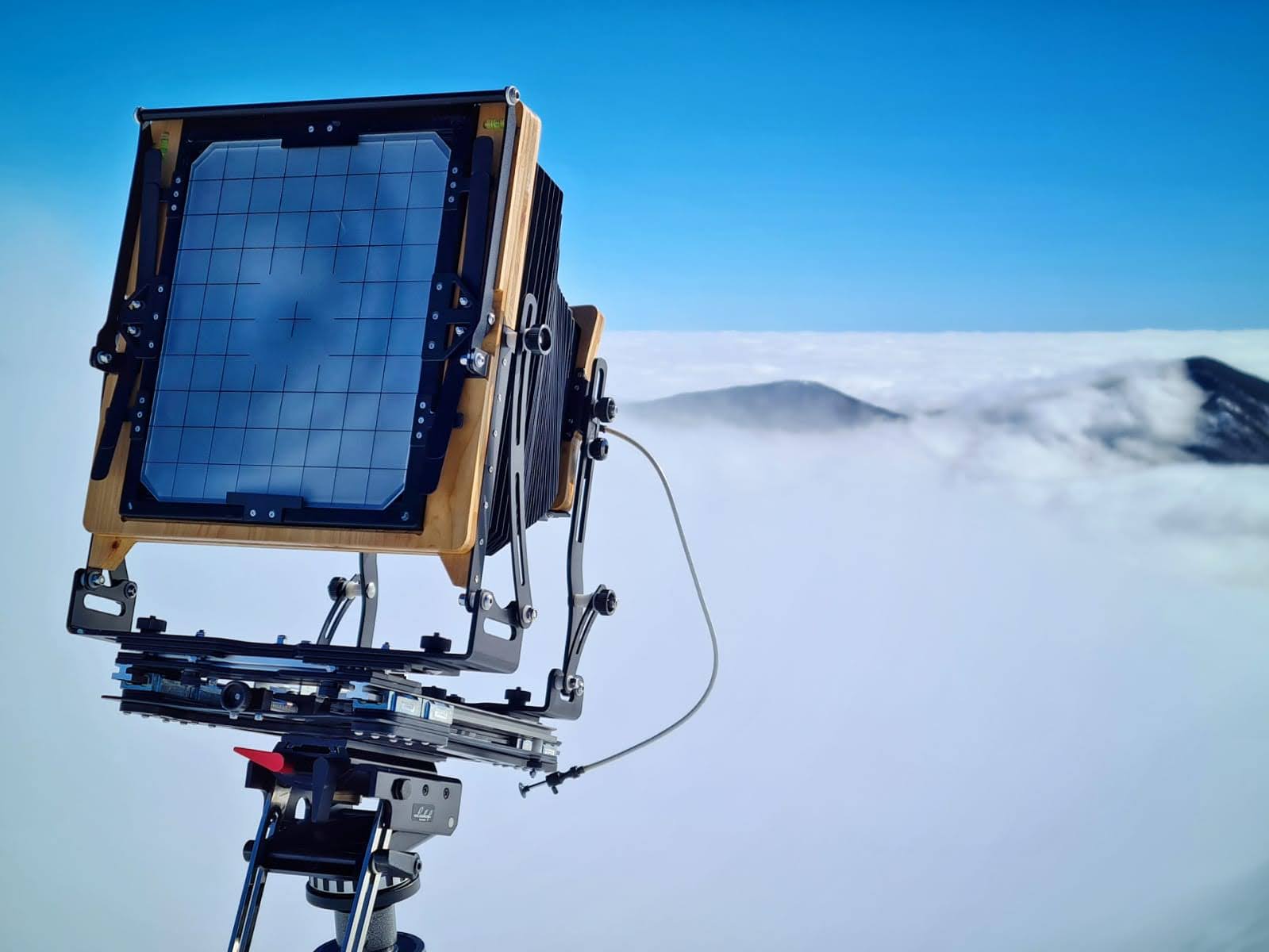

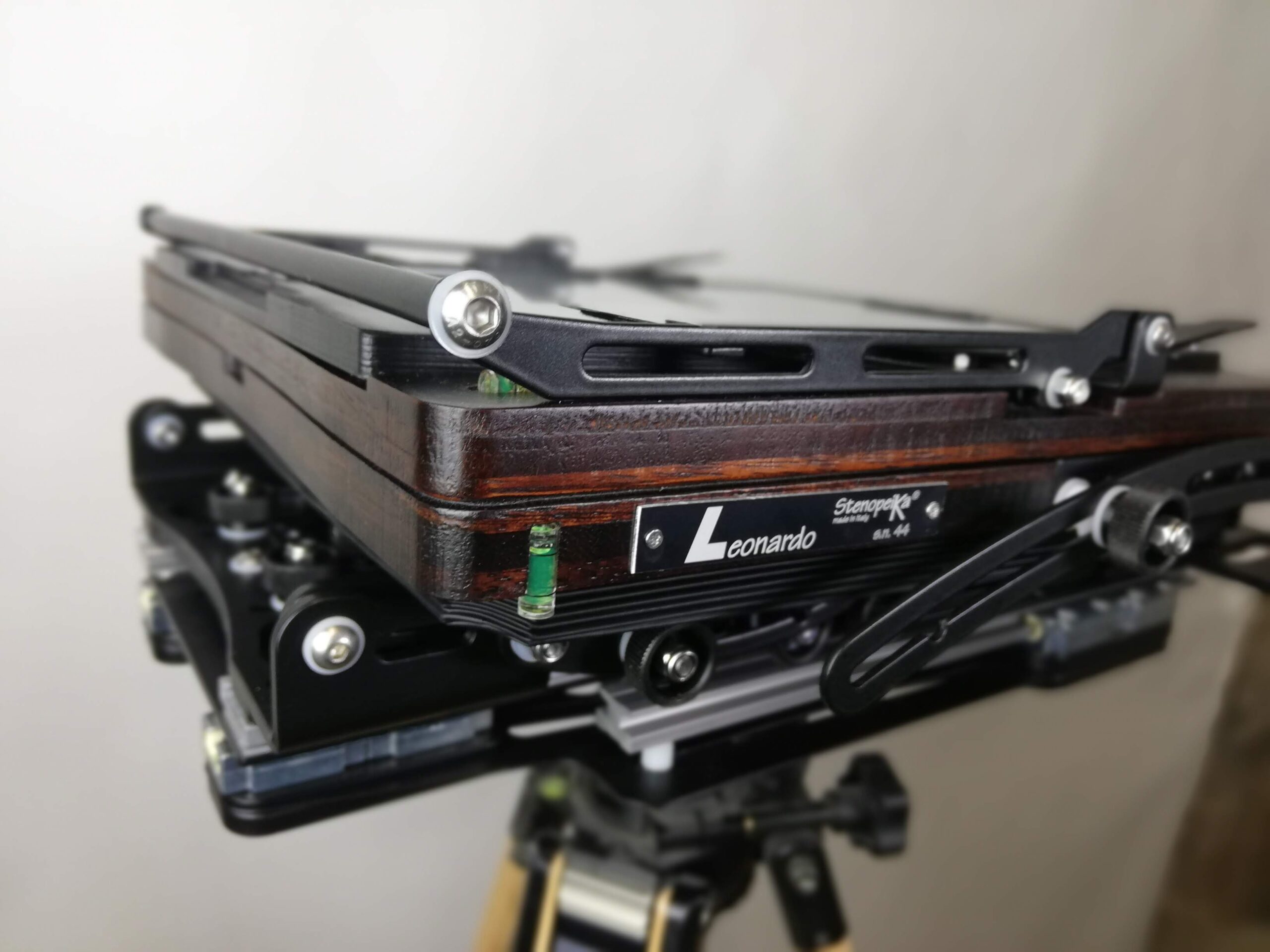

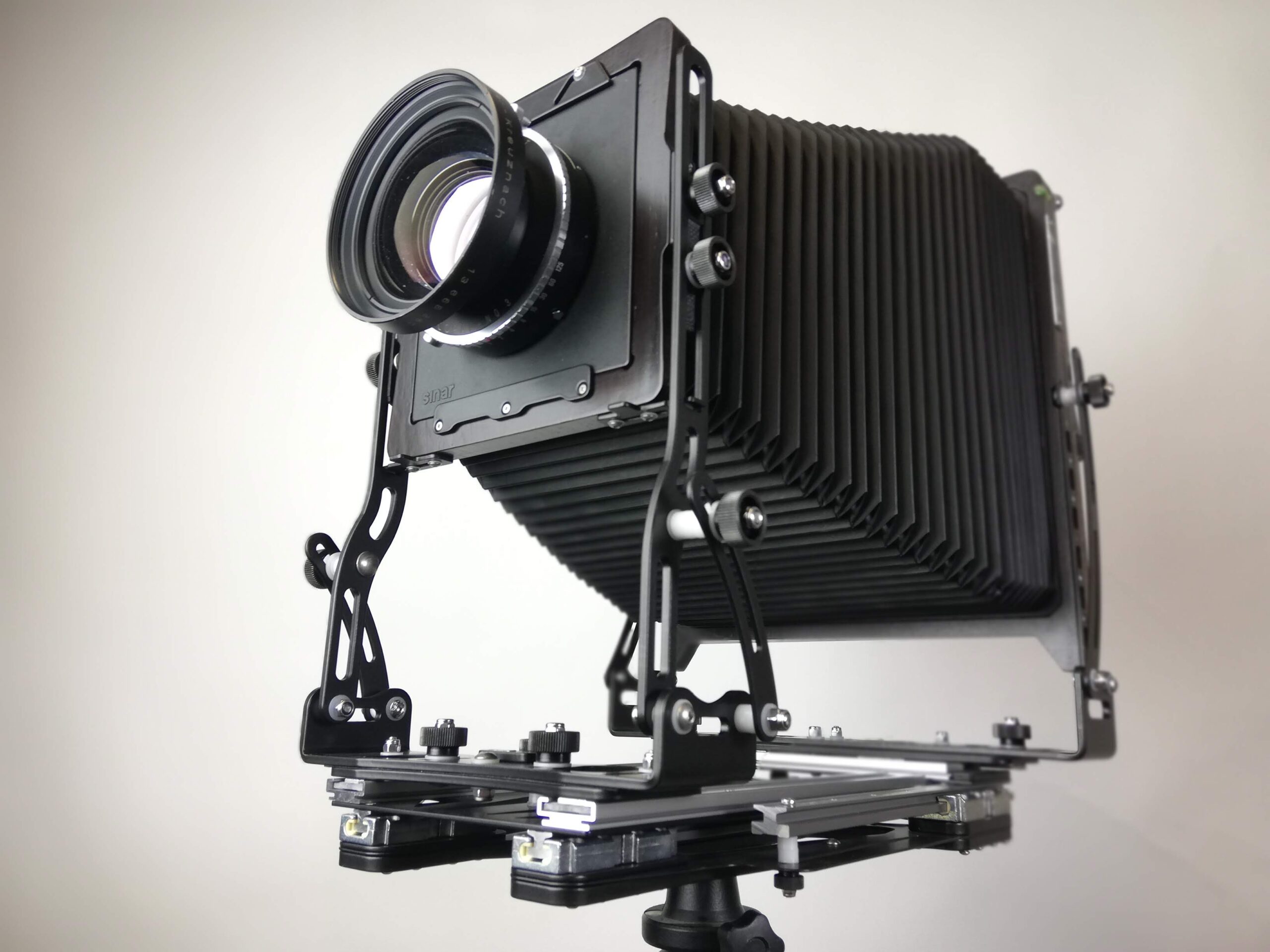

Leonardo 8×10
3.597,00 € no vat included
Leonardo 8×10 is an evolution of StenopeiKa 810se2 folding camera
Completely redesigned for a cleaner design offer two focusing systems, one fast and the other fine place under the focus glass, for a quick an comfortable camera setup.
The independent movements and controllable with a single knob offer the possibility of a total image control without surprises during the working session.
Now available in iroko wood (dark wood), Cypress 100% tuscany wood (light color) and very exclusive Olive wood.
With a very solid structure, it allows you to use very heavy lenses without losing the advantage of being able to be put in a backpack for your mountain excursions.
NOTE: Camera made on order, ask for delivery times here [email protected], lens and lens board not included
Technical features:
Format: 8×10″
Type: Folding camera
Materials: Wood (cypress or iroko) and aluminium
Max extension: 680 mm
Min extension (without tilt): 75 mm
Movements front standard:
Rise/fall: 6/4,8 cm
Shift: +/- 3 cm
Tilt: 25°/23,5°
Swing: +/-12°
Tilt from baseboard: 90°/ bellows limited
Movements rear standard:
Tilt from baseboard: 90°/ 20°
Swing: +/-12°
Close dimensions: 30cm X 30cm X 11cm
Weight: 4,5 Kg (cypress)
Lens board: sinar
